AOX-132G12RHC 620-650W

Jiangsu Ocean Solar Co., Ltd.

Price per Piece
Minimum Order	936-4999 Pcs	5000-9999 Pcs
Lead Time	28 days	28 days
AOX-144M10RHC450W	€36.9	€36.5

Note: Your Enquiry will be sent directly to Jiangsu Ocean Solar Co., Ltd..

TOPCon, N-type

430-460 Wp

20 kg

12 Years

1 Years of 99 %, 30 Years of 87.4 %

21.5 % - 23 %

1762x1134x30 mm

3.2 mm

0.30 %/°C

Technology

TOPCon, N-type

Power Range

620 - 650 Wp

Region

China

Weight

29 kg

Product Warranty

12 Years

Power Warranty

1 Years of 99 %, 30 Years of 87.4 %

Panel Efficiency

22.9 % - 24.1 %

Dimension

2382x1134x30 mm

Glass Thickness

3.2 mm

Temperature Coefficient of Pmax

-0.30 %/°C

Cell Number

Price:

€0.0718 / Wp

Price per Piece Price per Piece
Minimum Order	740-2999 Pcs	3000-6999 Pcs	7000+ Pcs
Lead Time	21 days	21 days	21 days
AOX-132G12RHC630W	€46.2	€45.7	€45.3

Contact Manufacturer

Note: Your Enquiry will be sent directly to Jiangsu Ocean Solar Co., Ltd..

Fewer micro-cracks, PID resistant, and endure harsh conditions.
SMBBfor trapping, lower resistance, better collection.
Low LCOE, reduced BOS cost, quick payback. More harvest with N-type TOPCon. Compatible, efficient container use cuts freight.

Product Info
Company Profile

Product Characteristics

Type

Monocrystalline

Model No.

AOX-132G12RHC620W

AOX-132G12RHC625W

AOX-132G12RHC630W

AOX-132G12RHC635W

AOX-132G12RHC640W

AOX-132G12RHC645W

AOX-132G12RHC650W

Product Warranty

12 Years

Power Warranty

1 Years of 99 %, 30 Years of 87.4 %

0.42 %

Power Tolerance

0 ~ +0.79 %

Electrical Data at STC

Maximum Power (Pmax)

620 Wp

625 Wp

630 Wp

635 Wp

640 Wp

645 Wp

650 Wp

Voltage at Maximum Power (Vmpp)

41.1 V

41.3 V

41.5 V

41.7 V

41.9 V

42.1 V

42.3 V

Current at Maximum Power (Impp)

15.09 A

15.13 A

15.18 A

15.23 A

15.28 A

15.33 A

15.37 A

Open Circuit Voltage (Voc)

49.2 V

49.4 V

49.6 V

49.8 V

50 V

50.2 V

50.4 V

Short Circuit Current (Isc)

15.94 A

15.98 A

16.03 A

16.08 A

16.14 A

16.19 A

16.23 A

Panel Efficiency

22.9 %

23 %

23.3 %

23.5 %

23.7 %

23.9 %

24.1 %

Electrical Data at NOCT

Maximum Power (Pmax)

471 Wp

475 Wp

479 Wp

483 Wp

487 Wp

491 Wp

495 Wp

Voltage at Maximum Power (Vmpp)

38.6 V

38.8 V

39 V

39.2 V

39.4 V

39.6 V

39.8 V

Current at Maximum Power (Impp)

12.2 A

12.24 A

12.28 A

12.32 A

12.36 A

12.4 A

12.44 A

Open Circuit Voltage (Voc)

46.6 V

46.8 V

47 V

47.2 V

47.4 V

47.6 V

47.8 V

Short Circuit Current (Isc)

12.89 A

12.93 A

12.97 A

13 A

13.05 A

13.09 A

13.12 A

Temperature

43±2 °C

Operating Temperature Range

-40 - +85 °C

Temperature Coefficient of Pmax

-0.30 %/°C

Temperature Coefficient of Voc

-0.24 %/°C

Temperature Coefficient of Isc

0.04 %/°C

Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Panel Dimension (H/W/D)

2382x1134x30 mm

Weight

29 kg

Cell Number

132

Glass Type

Anti-reflection Coating, Tempered

Glass Thickness

3.2 mm

Encapsulant Type

EVA

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

350 mm

Download Manufacturer's PDF

Datasheet

Specification

About US

Ocean Solar is a high-tech enterprise focused on producing high-efficiency monocrystalline and polycrystalline solar modules, which serve domestic and overseas installers, distributors, and factories engaged in off-grid and on-grid solar energy systems. At the same time, we provide high-quality raw materials and an end-to-end service for overseas solar panel manufacturers to optimize their supply chains

We were established in 2012, committed to producing solar panels for more than 10 years, with mature production technology and a professional R&D team.

The head office of the company is located in Jincheng Town, Jintan District, Changzhou City, Jiangsu Province. The sales team is located in Changzhou, dedicated to developing overseas markets. The second plant is in Ma'anshan, Anhui Province, with an annual production capacity of 500MW. We can provide 400W-700W solar panels, as well as provide customers with personalized, customized services.

Since its establishment, Ocean solar panels have been exported to Australia, New Zealand, Spain, Germany, Ukraine, Russia, Vietnam, Thailand, the Philippines, South Africa, China, and many other countries and regions. So far, the total export exceeds 1GWof solar panels.

With the concept of "World Shines Because of You", we provide customers with high-quality, stable, reliable, and price-competitive products, and establish long-term cooperation and win-win business. To reach peak carbon dioxide emissions, achieve carbon neutrality, and develop green energy as soon as possible, Ocean Solar will fully cooperate with global customers to create a better future.

Our Products

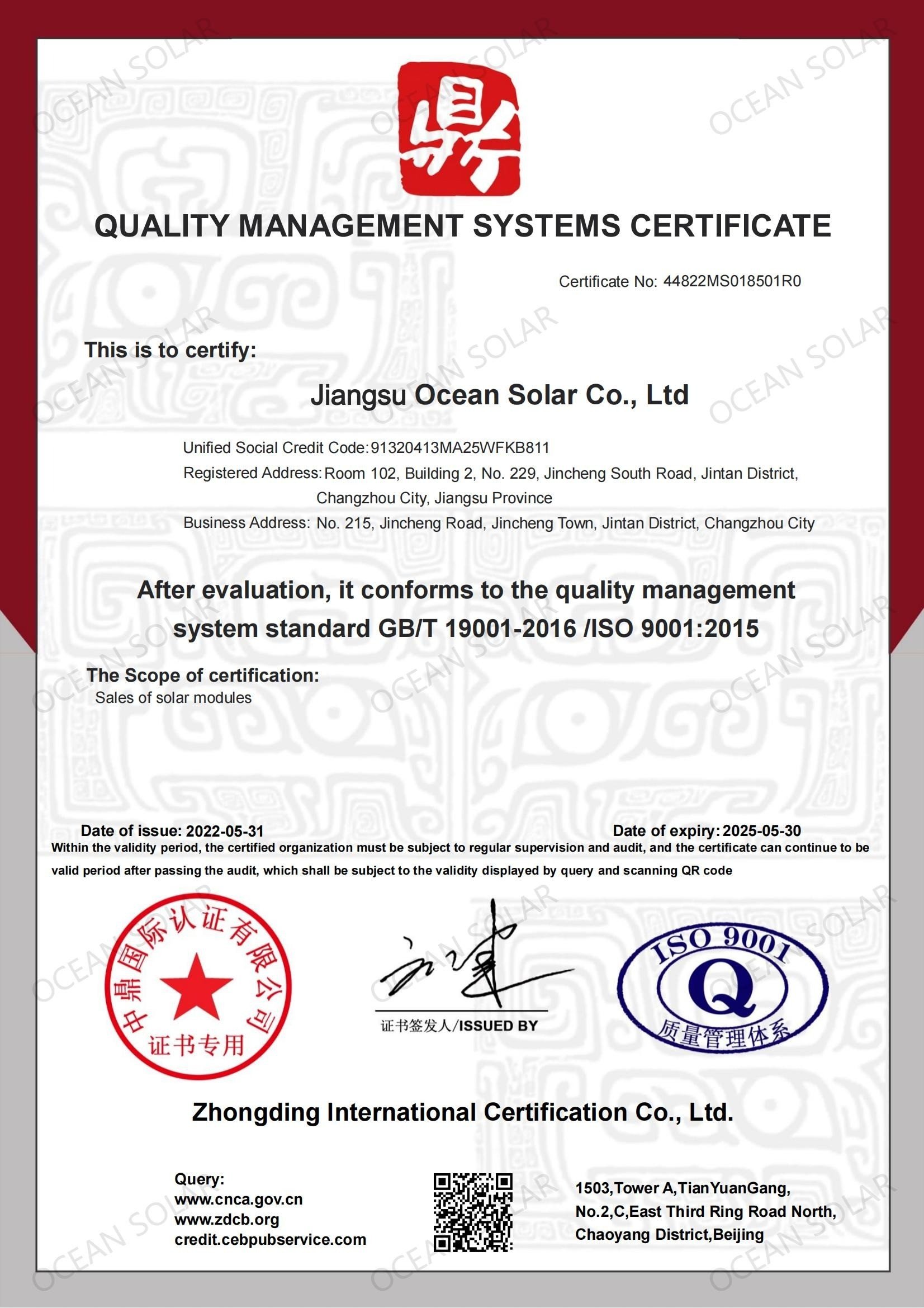

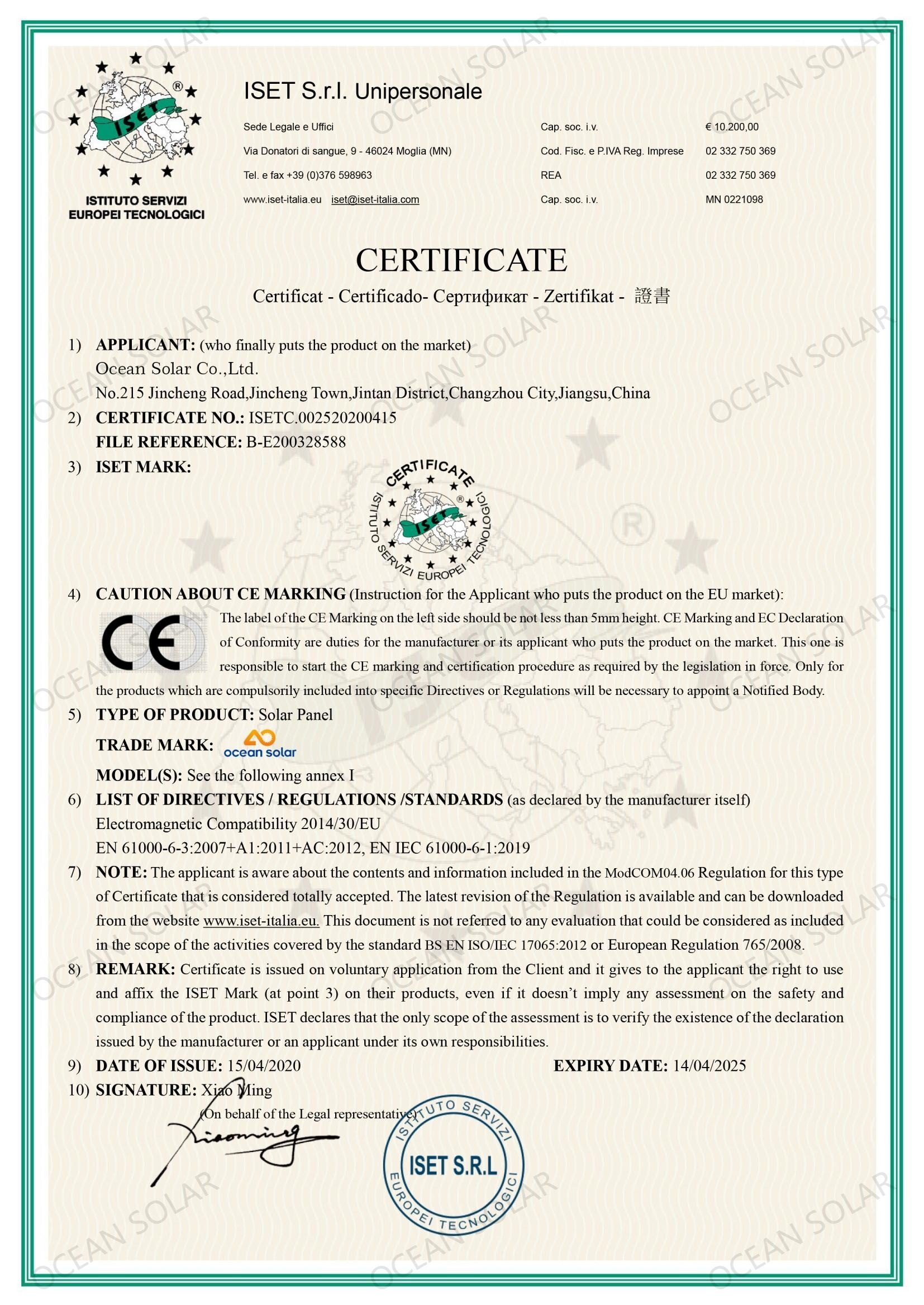

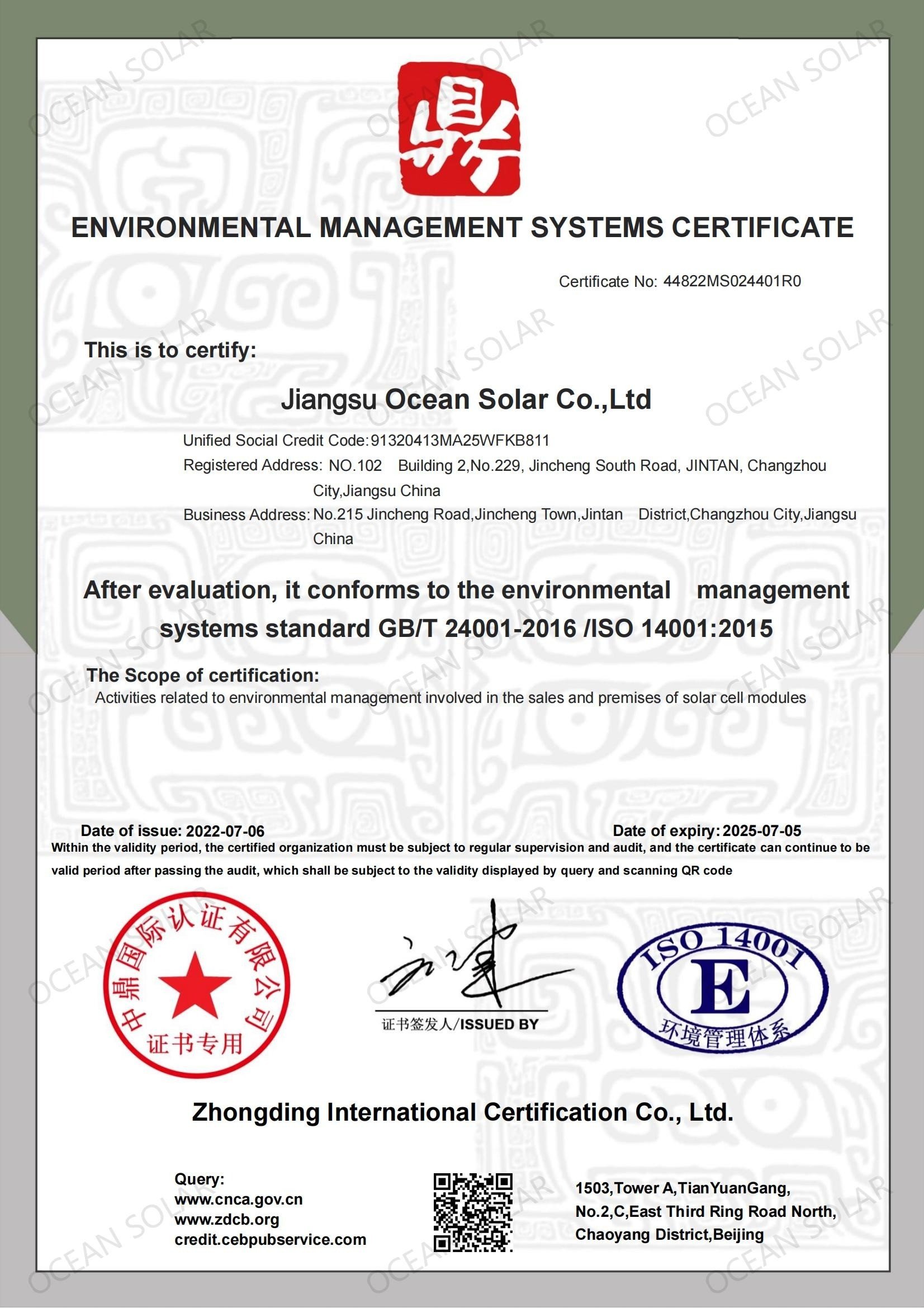

Certificates

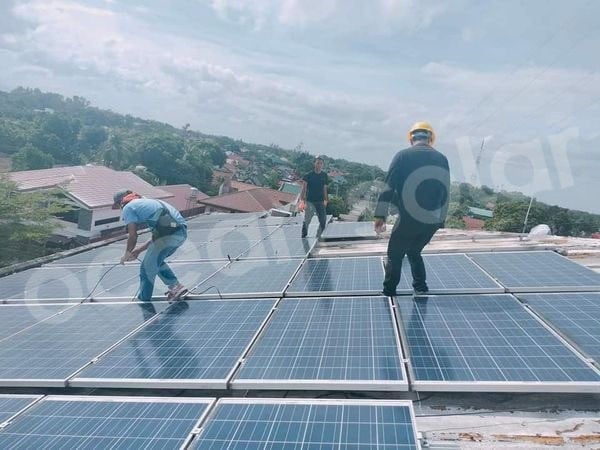

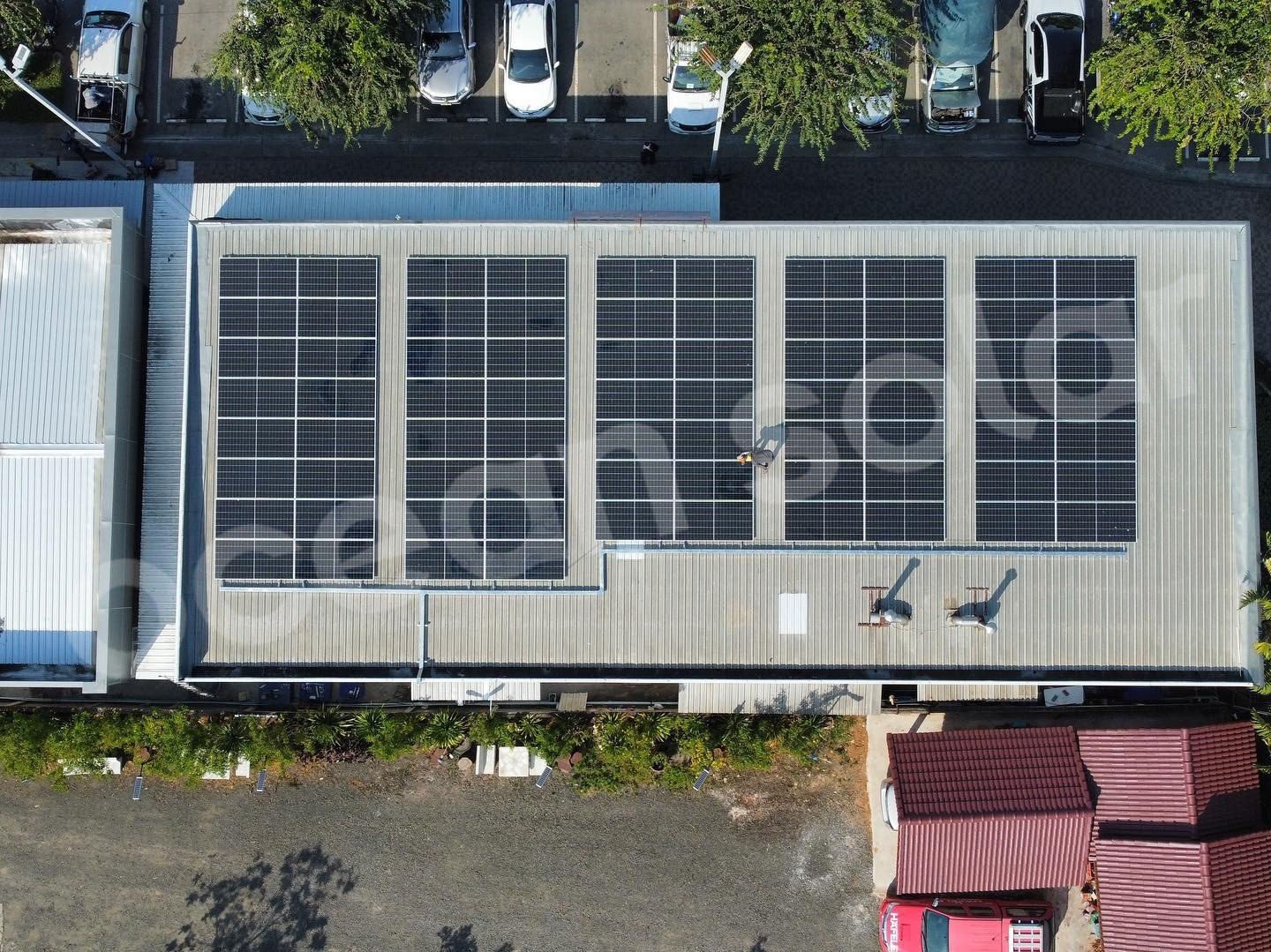

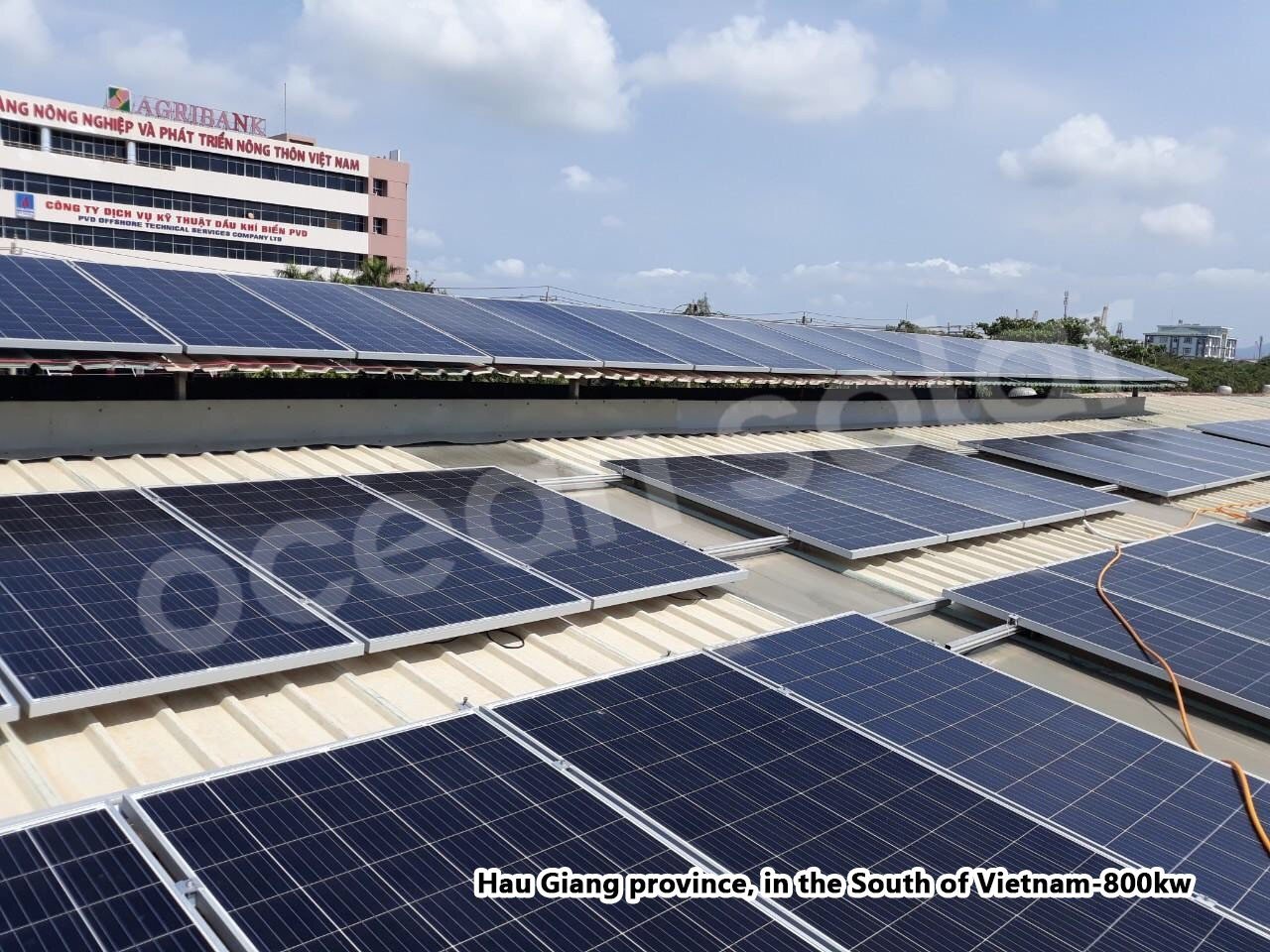

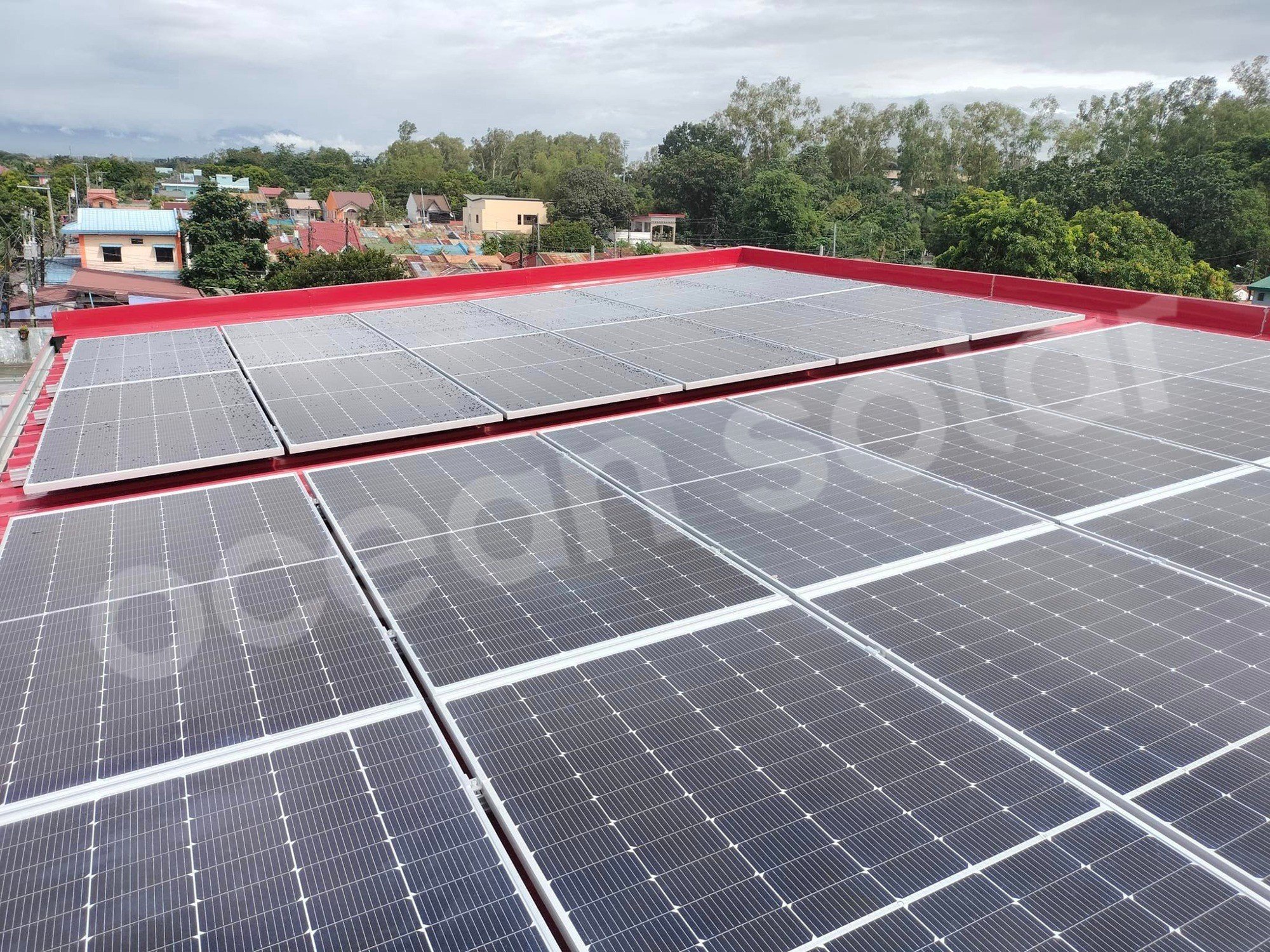

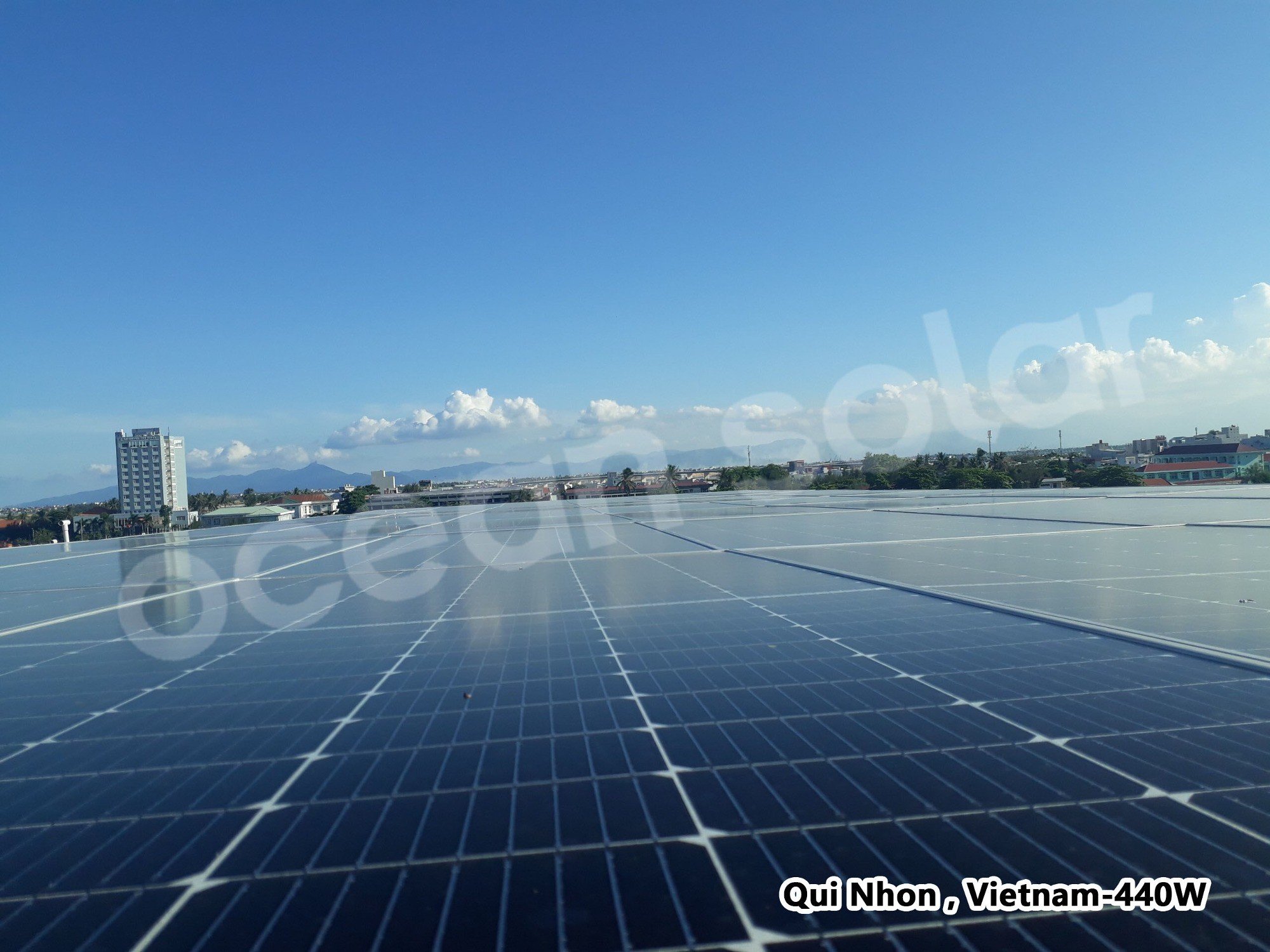

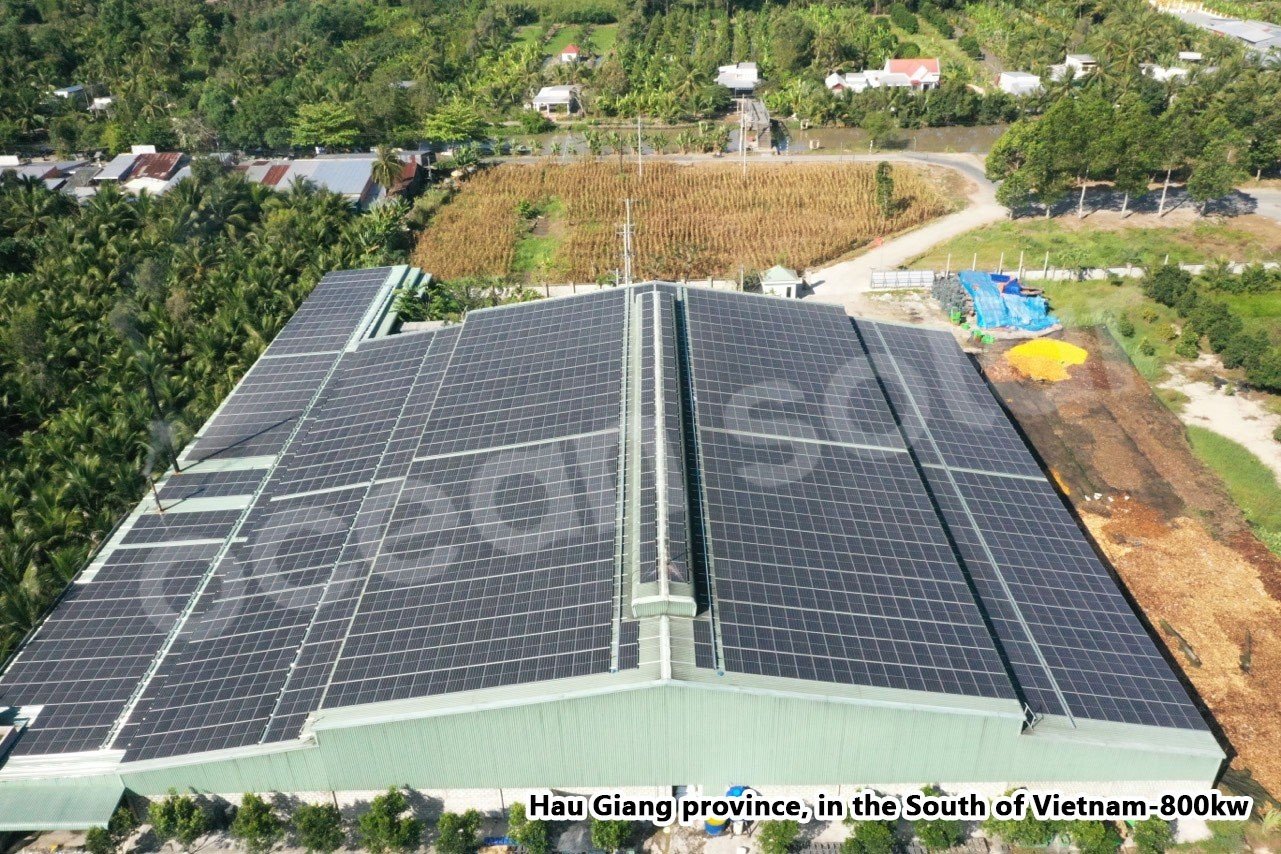

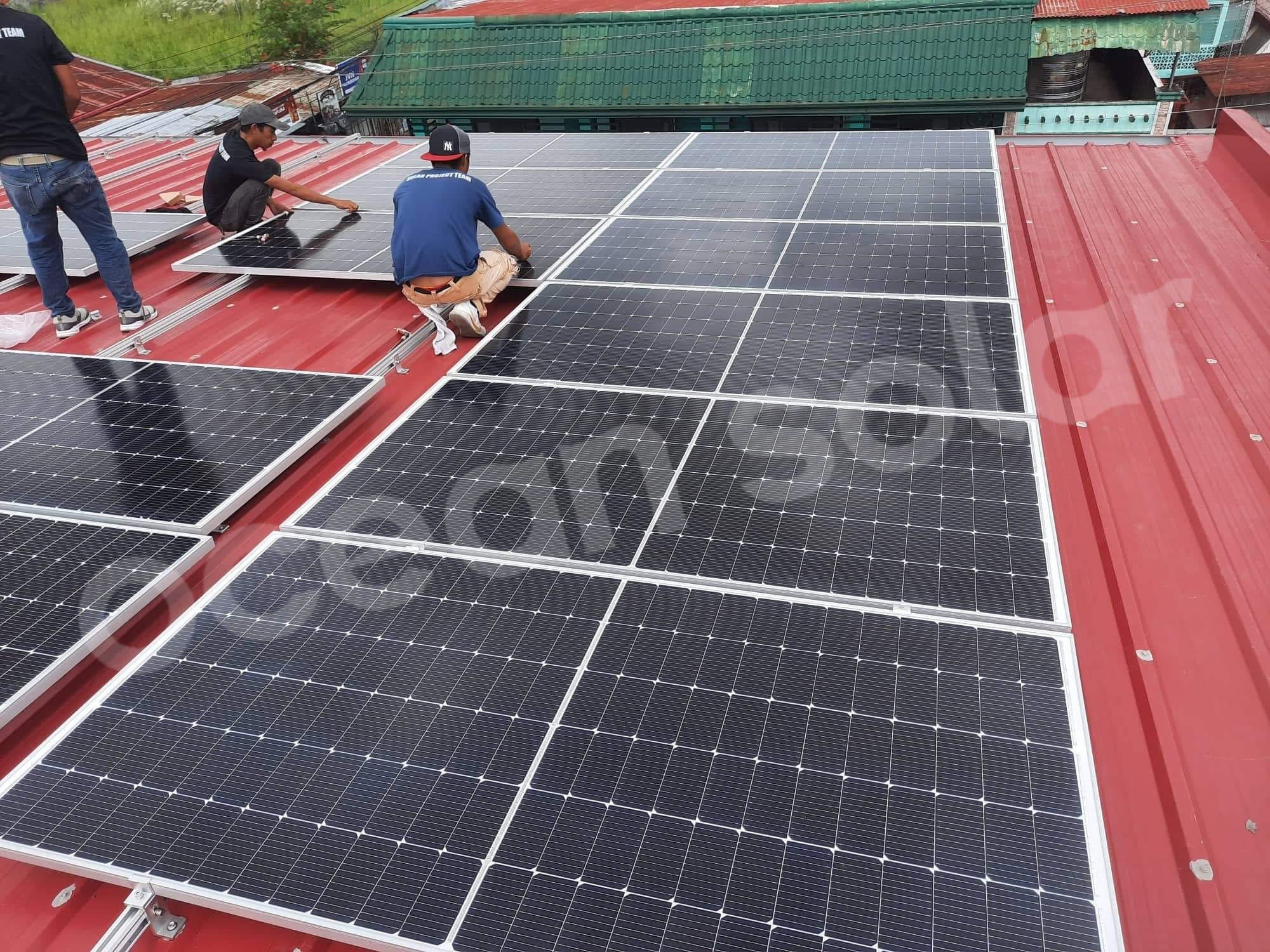

Projects
